| 電圧: | 220V/380V/460V | 力: | モデルに依存します |
|---|---|---|---|
| 容量: | 6000-15000 L/H | 重さ: | 2880のKG |
| 設定速度: | 6000RPM | 材料: | 食品グレードのステンレス鋼 |
| 制御システム: | PLC | 入口圧力: | 0.05-0.1 MPa |
| アウトレット圧力: | 0.1-0.3 MPa | モーター出力: | 7.5-30Kw |
| 外形寸法: | 1500*1150*1500～2100*1650*2300mm | コアコンポーネント: | PLC、モーター |
| 処理の種類: | 食用油 | 回転速度: | 高い |
| 騒音レベル: | より低い | ||
| ハイライト: | automatic discharge disc separator,oil refinery solid liquid separator,drum disc oil separator |
||

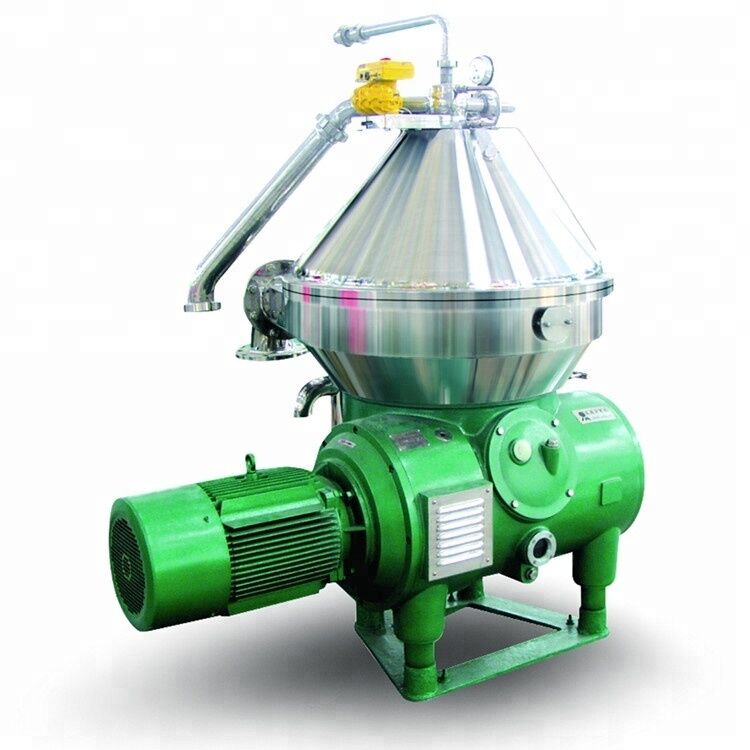

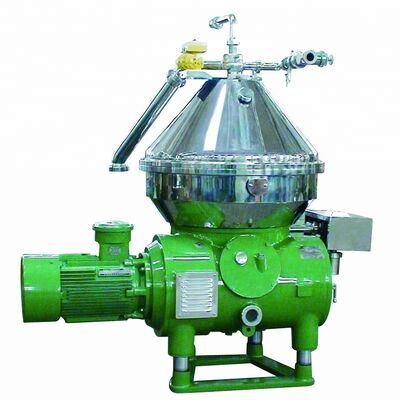

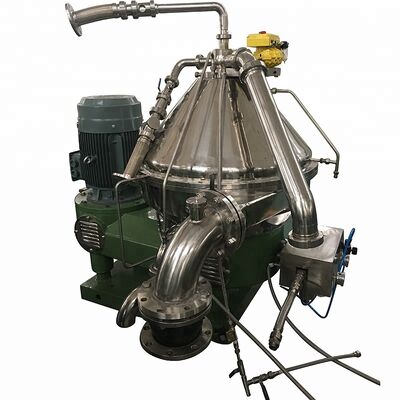

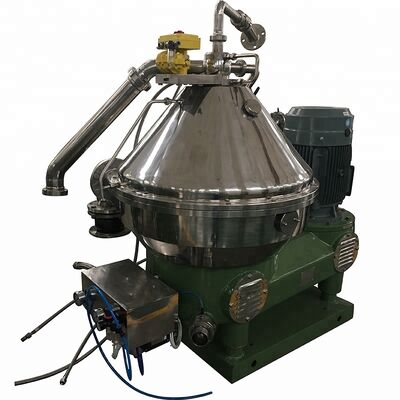

The DHZ series automatic discharging separator is specialized equipment for oil and fat refining, featuring high rotating speed, operational stability, completely sealed inlet and outlet systems, low noise, and excellent separation efficiency.
Juneng Separator is suitable for various oils and fats and provides personalized solutions to achieve optimal oil quality and maximize production capacity. DHZ series disc centrifuges for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils.
| Model | Treatment Capacity (L/H) | Inlet Pressure (Mpa) | Outlet Pressure (Mpa) | Motor Power (Kw) | Weight (Kg) | Outline Dimension (mm) |
|---|---|---|---|---|---|---|
| DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
| DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
| DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
| DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
| DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
| DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
| DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
| DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
Name: Separator disc
Brand: Juneng
Origin: China
Domestic famous engines
Name: Separator shaft
Brand: Juneng
Origin: China
Vertical shaft, cross shaft configurations
Name: Separator drum
Brand: Juneng
Origin: China
Domestic famous engines
Packaging Size: 123 (L) * 456 (W) * 789 (D)
Weight: 1.2 T
Packaging Details: The normal package is wooden box (Size: L*W*H). If exporting to European countries, the wooden box will be fumigated. If container space is limited, we use PE film for packing or accommodate special customer requests.
