Factory Use Disc Type Solid Liquid Separator
This industrial disc separator is engineered for efficient solid-liquid separation across multiple industries including vegetable oil refining, chemical processing, pharmaceuticals, and food production.
Product Overview

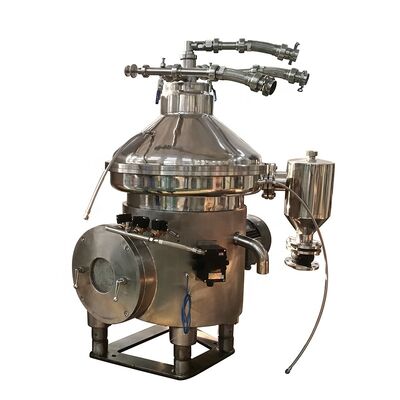

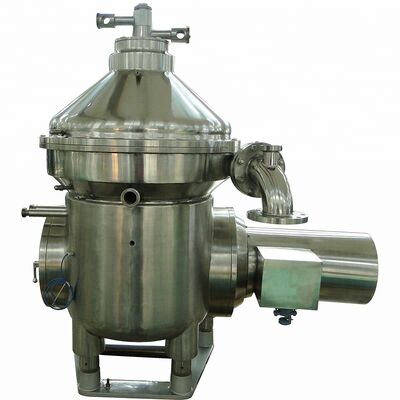

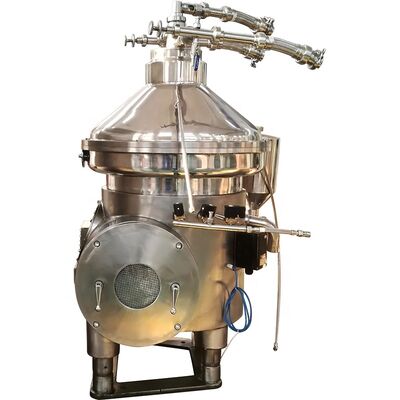

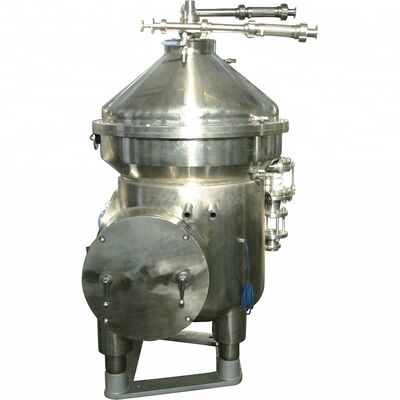

The DHZ470 disc separator is specifically designed for degumming, de-soaping, and water washing in continuous vegetable oil refining processes. It represents state-of-the-art equipment for modern oil refining operations while also serving various industrial applications requiring separation of suspension liquids with different specific gravities.
| Specification |
Details |
| Model |
DHZ470 |
| Speed of Drum |
Approx. 6600 rpm |
| Capacity (m³/h) |
3-10 |
| Equivalent Settling Area |
72×107 cm² |
| Motor Power |
15 kW |
| Weight |
~1880 kg |
Key Components & Construction
Rotating Bowl Drum Parts
Brand: Juneng
Origin: China
All material-contacting parts and components are manufactured from high-grade stainless steel, providing excellent corrosion resistance and meeting stringent food industry hygiene standards.
Separation Drum
Brand: Juneng
Origin: China
The drum serves as the core separation component, rotating at high speeds to efficiently separate materials. Each separator bowl undergoes precise dynamic balancing to ensure stable operation with minimal vibration and noise.
Power Transmission Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power through speed step-up gearing to the high-speed rotating components, while the cross shaft efficiently transfers motor power to the vertical shaft and main drum parts.
Equipment Base Frame
Brand: Juneng
Origin: China
The robust underframe provides primary support for the entire separator system. All four supporting feet incorporate advanced damping rubber pads that effectively isolate vibration between the separator and building structure.

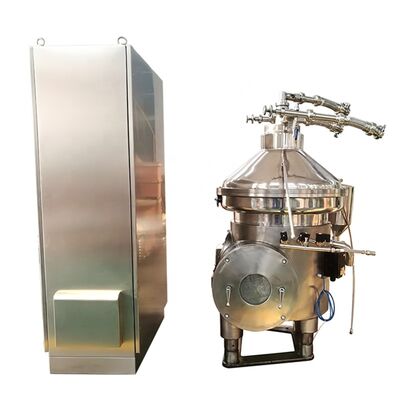

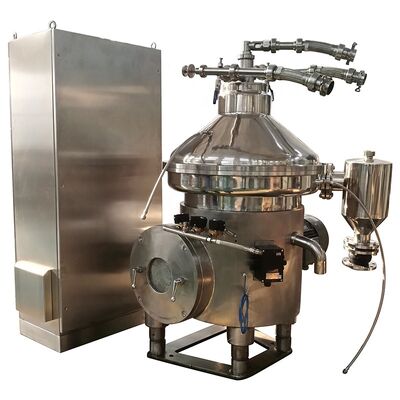

PLC Control System
Brand: Juneng
Origin: China
The separator features an advanced automatic control cabinet incorporating industrial computer technology and automatic overload protection. This highly automated system offers excellent adaptability to process changes, simplified adjustment capabilities, and significantly reduces operational labor requirements.
Manufacturing Process & Quality Assurance
Production Workflow
Separator Process Workshop
Precision Drum Processing
Advanced Process Center
Ultrasonic Testing
Dynamic Balancing Verification
Final Assembly
Expert assembly of complete separator units by skilled technicians.
Comprehensive Quality Control
- Material Test Certification
- Magnetic Particle Examination
- Non-destructive Testing
- Liquid Penetrant Inspection
- Dynamic Balancing Verification
- Radiographic Examination
International Certifications
Juneng maintains multiple international certifications including CE certification, ASME U certification, and ISO 9001 quality management system certification.
Customer Support Services
Pre-Sales Support
- Technical inquiry and consulting assistance
- Sample testing support services
- Factory visit arrangements
After-Sales Service
- Comprehensive machine installation training
- Complete operational training programs
- Overseas engineer service availability
Dedicated Technical Support Team
Our company maintains a specialized after-sales service technical team. All equipment sales include engineer-guided installation, comprehensive debugging assistance, and operator training until complete proficiency is achieved.
For any operational issues, we guarantee immediate processing with feedback within two hours of notification. Service engineers are dispatched to site locations to resolve problems and remain until complete customer satisfaction is achieved.
Company Profile
Juneng Group
Juneng Group is a large-scale industrial manufacturer in China, specializing in research, development, and production of industrial filters, separators, centrifuges, and pumps. The company maintains approximately 90% domestic market share across oils & fats, chemical, pharmaceutical, beverage, and petrochemical industries, establishing itself as a globally recognized producer and supplier.
With three production bases spanning 280,000 square meters in Nanjing and Yixing cities, Juneng employs over 1,100 skilled workers and operates more than 2,000 units of advanced production equipment and testing instrumentation.
Jiangsu Juneng Machinery Co., Ltd.
Specializing in disc separator and liquid pump manufacturing, our Yixing facility provides expert recommendations for optimal equipment selection tailored to specific application requirements.
Corporate Operational Principles
- Strategy: Professional dedication to core competency development
- Market: European quality standards at competitive Chinese pricing
- Management: Practical, standardized continuous improvement
- Service: Honest, responsible, and timely support
- Talent: Merit-based cooperation and employee development
- Technology: Industry leadership through innovation
Why Choose Juneng Brand
- Internationally certified quality production systems
- Direct manufacturer pricing advantages
- Comprehensive technical support and after-sales service
- Global exports to 20+ countries with excellent customer feedback
- Complete customized project feasibility reporting
Frequently Asked Questions
Factory Visit Arrangements
Q: How can we visit your factory?
A: International visitors: Fly to Shanghai airport for arranged pickup. Domestic visitors: Travel to Wuxi station by air or train for scheduled pickup service.
Quality Assurance
Q: How do you ensure product quality?
A: As a state-owned enterprise with 30+ years experience, we implement strict operational policies, advanced precision machining, certified operators, multi-stage processing, international brand components, and comprehensive testing throughout production.
Payment Methods
Q: What payment methods do you accept?
A: We accept various payment methods, primarily T/T and L/C at sight.
Warranty Coverage
Q: What is the warranty period?
A: Standard warranty coverage extends 12 months post-commissioning.
Company Reliability
Q: How can new customers trust your company?
A: With 10+ years on Alibaba as golden suppliers, multiple authority certifications (CE, ISO9001, Alibaba onsite check), and Trade Assurance limits exceeding US$42,000, we demonstrate proven reliability.
Delivery Terms
Q: What are your shipment terms and delivery timelines?
A: Standard delivery: 20 days. Customized equipment: 30 days. Timelines vary based on order quantity.
Pricing Considerations
Q: Do you offer discounts?
A: We strive to provide competitive pricing while maintaining superior service quality.
