| 電圧: | 220V/380V | 力: | 45kw |
|---|---|---|---|
| 寸法: | 2030*1960*1530mm | 重さ: | 2200 kg |
| 速度の配置: | 3000 rpm | 容量: | 501～1000l/h |
| ドラムの直径: | 800mm | ドラムの長さ: | 450mm |
| ドラムの音量: | 100L | 負荷容量: | 150kg |
| ドラム速度: | 1550 r/min | 最大分離係数: | 1070 |
| モーターパワー: | 45kw | 処理能力: | 0.8～2.5t/h |
| 水分: | 5~35% | ||
| ハイライト: | 45kw Power Peeler Centrifuge,2030*1960*1530mm Dimension Peeler Centrifuge,1 Year Warranty Peeler Centrifuge |
||

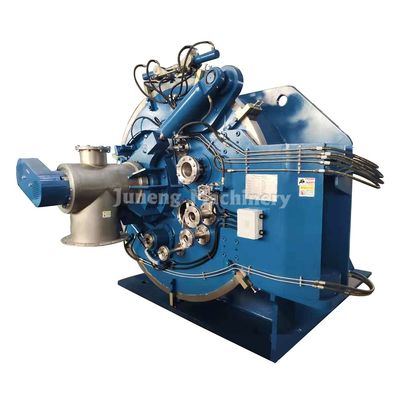

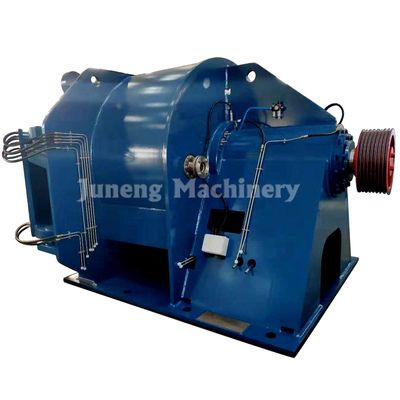

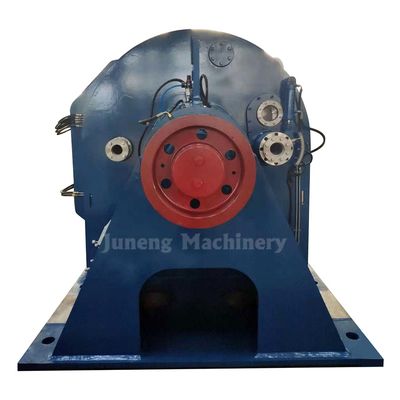

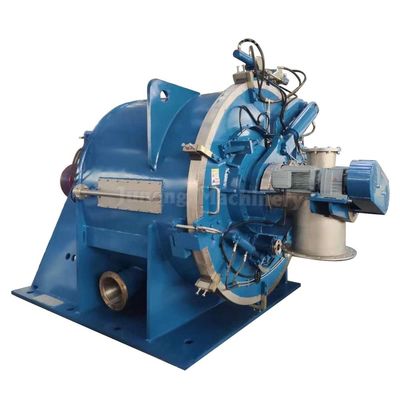

Description of Siphonic Centrifuge:
Siphonic Centrifuge is a type of full-automatic centrifuge with continuously working and batch operation. According to the structure, it can be divided into Siphonic Scraper Centrifuge (GKH series) and common scraper centrifuge (GK series).
The scraper centrifuge can be switched between automatic and manual operation, so it can realize the periodic cyclic operation of feeding, dehydration, washing and discharging of the feed material.
Compared with common scraper centrifuge, the siphonic scraper centrifuge has siphonic force like vacuum, so it has better production capacity and separation effect. Especially, it is suitable for the feed material which has small solids, high viscosity, slow filtration and that needs to wash the filter cake.
| Item/Type | GKH800-N | GKH1250-N | GKH1600-N |
|---|---|---|---|
| Drum diameter(mm) | 800 | 1250 | 1600 |
| Drum length (mm) | 450 | 600 | 1000 |
| Drum volume (L) | 100 | 355 | 830 |
| Loading capacity (Kg) | 150 | 450 | 996 |
| Drum speed (r/min) | 1550 | 1200 | 950 |
| Maximum separation factor | 1070 | 1006 | 799 |
| Motor power (Kw) | 45 | 90 | 132 |
| Size (mm) | 2030*1960*1530 | 2685*2300*1900 | 4050*2745*2295 |
| Weight (Kg) | 5500 | 10500 | 16550 |
| Model | Capacity(wet base) T/h | Moisture % | Solid phase loss % |
|---|---|---|---|
| GKH800N | 0.8-2.5 | 5-35 | 0.05 |
| GKH1250 | 3.5-6.5 | 5-35 | 0.05 |
| GKH1600 | 6.5-10 | 5-35 | 0.05 |
GKH series siphonic centrifuge is especially used in the occasion of the higher production, lower moisture in residue of the cake and sufficient washing.
It is widely used in industry area of the solid-liquid separation of the raw material and intermediate products, such as foodstuff, pharmacy, chemical, national defence and so on.
| Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack it according to customers special request.
Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filter, Separator, Decanter centrifuge and pump. We have four factories which located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Filter, Separator, Decanter centrifuge and pump.
In addition, we have obtained CE certificates, ASME U certificate and ISO 9001 certificate. And Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, German, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and so on.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We are devoted to centrifuges and dryers, which could used in various industries, such as environmental protection, food industry, chemical industry and pharmaceutical industry etc.
A: If you come from abroad, air to Shanghai airport, then we can pick you up at airport. If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
A: Our Company is a state owned enterprise with more than 30 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
A: We accept most of the payment methods, but mainly accept T/T, L/C at sight.
A: Our officially promised warranty time is 12 months after commissioning.
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What's more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days. For some customized machine 30 days is necessary.
A: I will surely try my best to help you get those by the best price and good service at the same time.
