商品の詳細:
|
| 自動グレード: | 半自動 | 電圧: | カスタマイズ |
|---|---|---|---|
| 力: | 1500W | 重さ: | 1000 kg |
| 寸法: | 1610*1250*2500 mm | ろ過エリア: | 12m² |
| 材料: | 炭素鋼、ステンレス鋼 | 設計温度: | 100-150℃ |
| 設計圧力: | 0.6 MPa | インレットサイズ: | DN50 |
| 容量: | 2〜4t/h | 濾過ケーキの容積: | 240L |
| 作業圧力: | 0.5 MPa | 作業温度: | ≤150 °C |
| 機械容積: | 1000L | ||
| ハイライト: | semi-automatic oil bleaching filter,pressure leaf filter 12m2,oil bleaching pressure filter |
||
| Attribute | Value |
|---|---|
| Condition | New |
| Automatic Grade | Semi-automatic |
| Voltage | Customized |
| Power | 1500W |
| Weight | 1000 kg |
| Dimensions (L×W×H) | 1610×1250×2500 mm |
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration Area | 12m² |
| Material | Carbon steel, Stainless steel |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet Size | DN50 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory |

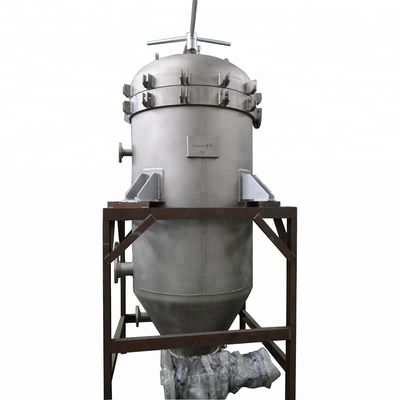

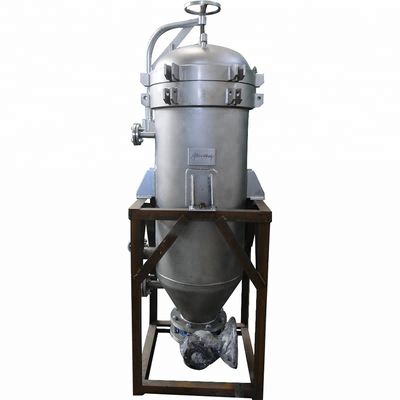

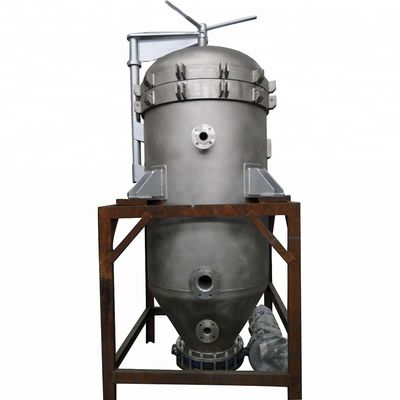

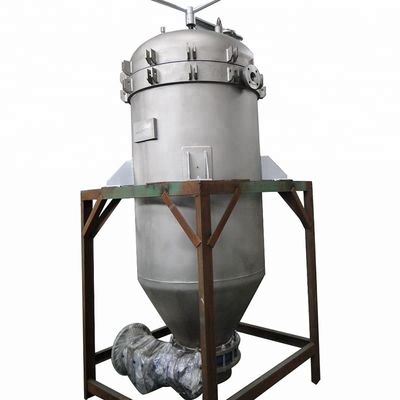

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

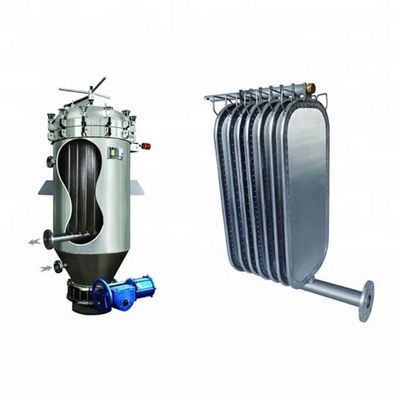

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe for convenient dismantling and cleaning.
| Model | Filtration Area (m²) | Filter Cake Volume (L) | Treatment Capacity (Oil) | Work Pressure (Mpa) | Work Temperature (℃) | Machine Volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| Packaging | Details |
|---|---|
| Size | 123 (L) × 456 (W) × 789 (D) |
| Weight | 1.2 T |
| Packaging Details | Standard wooden box packaging. European shipments include fumigation. Custom packaging available for special requirements. |
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we hold CE certificates, ASME U certificate and ISO 9001 certification.
Our products are sold throughout China and exported to USA, Germany, Korea, Japan, and other countries. We welcome OEM and ODM orders, with customer service available to discuss your specific requirements.
