| 容量: | 2-4T/h | ろ過エリア: | 12m2 |
|---|---|---|---|
| 材料: | 炭素鋼、ステンレス鋼 | 設計温度: | 100-150℃ |
| 設計圧力: | 0.6MPa | インレットサイズ: | DN50 |
| オーバーフローポートサイズ: | DN40 | 濾過ケーキの容積: | 240L |
| 作業圧力: | 0.1-0.4MPA | 作業温度: | ≤150 °C |
| 機械容積: | 1000L | 葉材料: | 316L |
| 葉の厚さ: | 1.8 mm | バタフライバルブサイズ: | DN400 |
| 空気圧アクチュエーター圧力: | 5.5棒 | ||
| ハイライト: | stainless steel plate filter,vertical leaf filter 12m2,pressure leaf filter 2-4T/H |
||
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet size | DN50 |
| Overflow port size | DN40 |

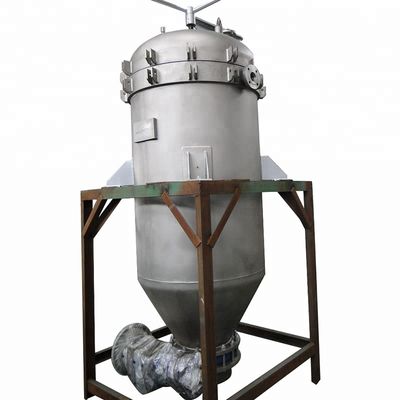

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

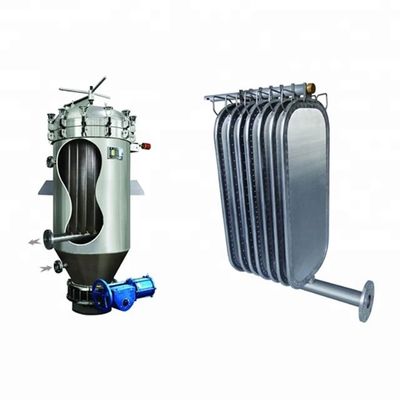

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, allowing for convenient dismantling and cleaning.
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.5 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.5 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.6 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.6 | ≤150 | 1300 |
| Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
| Packaging Details | Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special requests. |
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we hold CE certificates, ASME U certificate and ISO 9001 certification.
Our products are sold throughout China and exported to USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and other countries. We welcome OEM and ODM orders and provide comprehensive engineering support for your applications.
