| 容量: | 2-4T/h | ろ過エリア: | 12m2 |
|---|---|---|---|
| 材料: | 炭素鋼、ステンレス鋼 | 設計温度: | 100-150℃ |
| 設計圧力: | 0.6MPa | インレットサイズ: | DN50 |
| オーバーフローポートサイズ: | DN40 | 濾過ケーキの容積: | 240L |
| 作業圧力: | 0.1-0.4MPA | 最大圧力: | 0.5mpa |
| 作業温度: | ≤150 °C | 機械容積: | 1000L |
| フィルター 葉: | 11 | 葉材料: | 316L |
| バタフライバルブサイズ: | DN400 | ||
| ハイライト: | Vertical Leaf Oil Filter 12m2,Pressure Leaf Filter 2-4T/H,Oil Filter with Filtration Area |
||
| Condition | New |
| Warranty | 1 Year |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration area | 12m² |
| Material | Carbon steel, Stainless steel |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet size | DN50 |
| Overflow port size | DN40 |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| After-sales Service Provided | Video technical support |
| Applicable Industries | Food & Beverage Factory |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel |
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

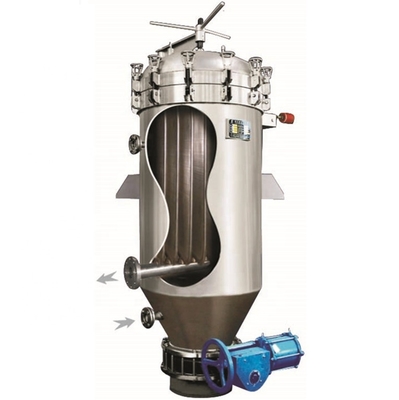

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
| Model | Filtration area (m²) | Filter cake volume (L) | Treatment Capacity (Oil) | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-12 | 12 | 240 | 2-4 | 0.5 | ≤150 | 1000 |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging is wooden box. For European exports, wooden boxes are fumigated. Alternative packaging available upon request.
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we hold CE certificates, ASME U certificate and ISO 9001 certification.
Our products are sold throughout China and exported to USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and other countries. We welcome OEM and ODM orders.
